BT WIRELINE DRILL ROD
Drill rods are essential tools used in drilling operations. They are long, slender rods that connect the drill bit to the drill machine, allowing for the efficient and effective drilling of holes. One type of drill rod that is commonly used is the BTW drill rod.
The BTW drill rod is a type of wireline drill rod that is designed for use in diamond drilling operations. It is made from high-quality steel and is designed to be strong and durable, able to withstand the harsh conditions of drilling operations. The BTW drill rod is also designed to be flexible, allowing it to bend and flex as needed during drilling operations.
One of the key benefits of using a BTW drill rod is that it allows for faster drilling speeds and increased drilling efficiency. This is because the rod is designed to be lightweight and easy to handle, making it easier for drillers to maneuver the drill bit and achieve accurate results.
Overall, the BTW drill rod is an essential tool for any drilling operation. Its strength, durability, and flexibility make it an ideal choice for diamond drilling operations, allowing for faster drilling speeds and increased efficiency. Whether you are drilling for oil, gas, or minerals, the BTW drill rod is a reliable and effective tool that can help you achieve your drilling goals.

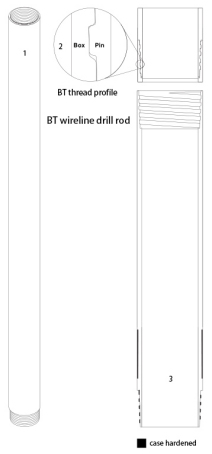

BT drill rod configuration:
1-BT drill rod overview
2-BT drill rod box and pin thread profile
3-BT drill rod case hardened illustration
NOTE:
(1)1.5 m/5 ft and 3 m/10 ft BT drill rods are available.
| BT Rod Nonimal Parameter | Metric | Imperial |
| BT Drill Rod OD | 55.6 mm | 2.189 in |
| BT Drill Rod ID | 46.0 mm | 1.811 in |
| BT Drill Rod Weight | 18 kg/m3 | 39 lb/m3 |
| BT Drill Rod Thread Pitch | 12.7 mm | 2 in |
| BT Drill Rod Pin Thread Length | 55.88 mm | 2.20 in |
BT Drill Rods Package Specifications
3.0 m/10 ft Rod Bundle (40 Rods)
Dimensions (L x W x H) 3100 x 380 x 430 mm
Volume 0.51 m3
Gross Weight 760 kg
1.5 m/5 ft Rod Bundle (40 Rods)
Dimensions (L x W x H) 1600 x 380 x 430 mm
Volume 0.26 m3
Gross Weight 385 kg
Container Shipments:
20 ft container load of 3.0 m/10 ft rods holds 25 bundles (around1000 rods)
40 ft container load of 3.0 m/10 ft rods holds 33 bundles (around1300 rods)
Our Services:
Ø Provide the technical design and solutions;
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client's requirements.
We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.
